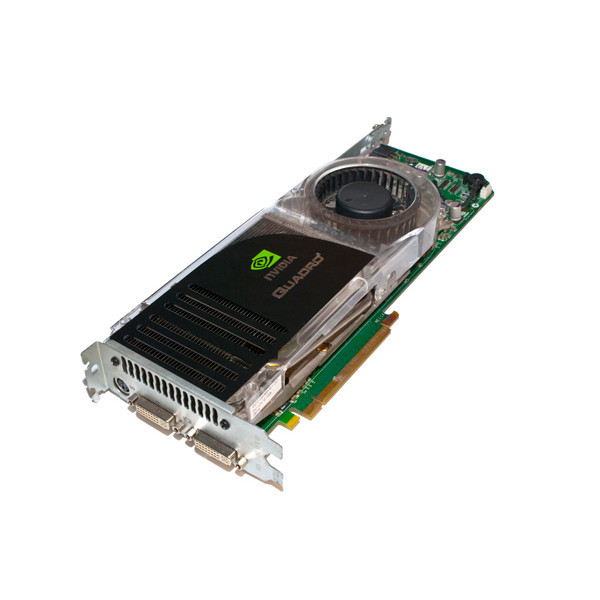

APPLE 661-4461 Quadro FX 5600 MAC 1.5 GB 512-bit GDDR3 PCI Express 2.0 x16 SLI Supported Workstation Video Card

NVIDIA Quadro ultra-high-end graphic solutions enable you to solve the most complex visual computing challenges.

The Quadro FX 5600 features a ground-breaking unified architecture delivering optimized CAD, DCC, and visualization application performance.

Featuring:

• Industry’s first 1.5GB frame buffer
• Massive memory bandwidth up to 76.8 GBps
• Interactive visualization of the largest 64-bit datasets
• C programming environment for the GPU

System Requirements

BOARD FEATURES	NVIDIA Quadro FX 5600
Memory Size	1.5 GB GDDR3
Memory Interface	384-bit
Memory Bandwidth	76.8 GBps
Form Factor ATX	ATX 4.38” x 12.28”
Graphics Bus	PCI Express x16
Number of slots	2
Display Connectors	DVI-I DVI-I STEREO
Dual Link DVI	Yes (2)
Max Power Consumption	171W
Auxiliary Power Connectors	Yes (2)
Thermal Solution	Active Fansink
OpenGL	2.1
Shader Model	4.0
DirectX	10.0
NVIDIA® SLI™ Technology	Yes
C Programming Environment	Yes
HD SDI	Optional
Genlock/Framelock	Optional

Package Contents:

• NVIDIA Quadro FX 5600 graphics card
• NVIDIA® SLI™ Connector
• DVI-to-VGA Adapter
• Y Power Cable
• Installation CD
• Installation Guide
• Registration Card

Minimum System Requirements:
Operating System

• Microsoft® Windows® XP or Professional x64 Edition
• Microsoft Windows Vista
• Linux 32-bit or 64-bit
• Solaris

Processor

• Intel® Pentium® 4 or Xeon® processor or higher
• AMD Opteron™ processor or higher

RAM

• 1GB minimum, 2GB recommended

System Interface

• Dual slot with 1 open PCI Express® x16 slot

C Programming Environment for the GPU
The NVIDIA® CUDA™ GPU computing software provides a C language environment and tool suite that unleashes new capabilities to solve complex, visualization challenges such as real-time ray tracing and interactive volume rendering.

Next-Generation Vertex and Pixel Programmability Shader Model 4.0
Reference standard for shader model 4.0 enabling a higher level of performance and ultra-realistic effects for next generation OpenGL and DirectX 10 industry-leading professional applications.

1.5GB GDDR3 Frame Buffer with Ultra Fast Memory Bandwidth
Industry’s first 1.5GB frame buffer and massive memory bandwidth up to 76.8GB/sec. delivers high throughput for interactive visualization of large models and high-performance for real time processing of large textures and frames and enables the highest quality and resolution full-scene antialiasing (FSAA).

Full-Scene Antialiasing (FSAA)
FSAA dramatically reduces visual aliasing artifacts or "jaggies", resulting in highly realistic scenes.

Fast 3D Textures
Fast transfer and manipulation of 3D textures resulting in more interactive visualization of large volumetric dataset.

Jumbo 8K Textures Processing
Faster processing of very large textures resulting in higher performances when zooming and panning through high resolution images.

Dual Dual-Link Digital Display Connectors
Dual dual-link TMDS transmitters support ultra-high-resolution panels (up to 3840 x 2400 @ 24Hz on each panel) -- which result in amazing image quality producing detailed photorealistic images.

NVIDIA PureVideo Technology
NVIDIA® PureVideo™ technology is the combination of high-definition video processors and software that delivers unprecedented picture clarity, smooth video, accurate color, and precise image scaling for SD and HD video content. Features include, high-quality scaling, spatial temporal de-interlacing, inverse telecine, and high quality HD video playback from DVD.

NVIDIA SLI Technology
NVIDIA® SLI™ technology enables dynamically scalable graphics performance, enhanced image quality, and expanded display real-estate.

Essential for Microsoft Windows Vista
Offering an enriched 3D user interface, increased application performance, and the highest image quality, NVIDIA Quadro graphics boards and NVIDIA OpenGL ICD drivers are optimized for 32- and 64-bit architectures to enable the best Windows® Vista™ experience.
