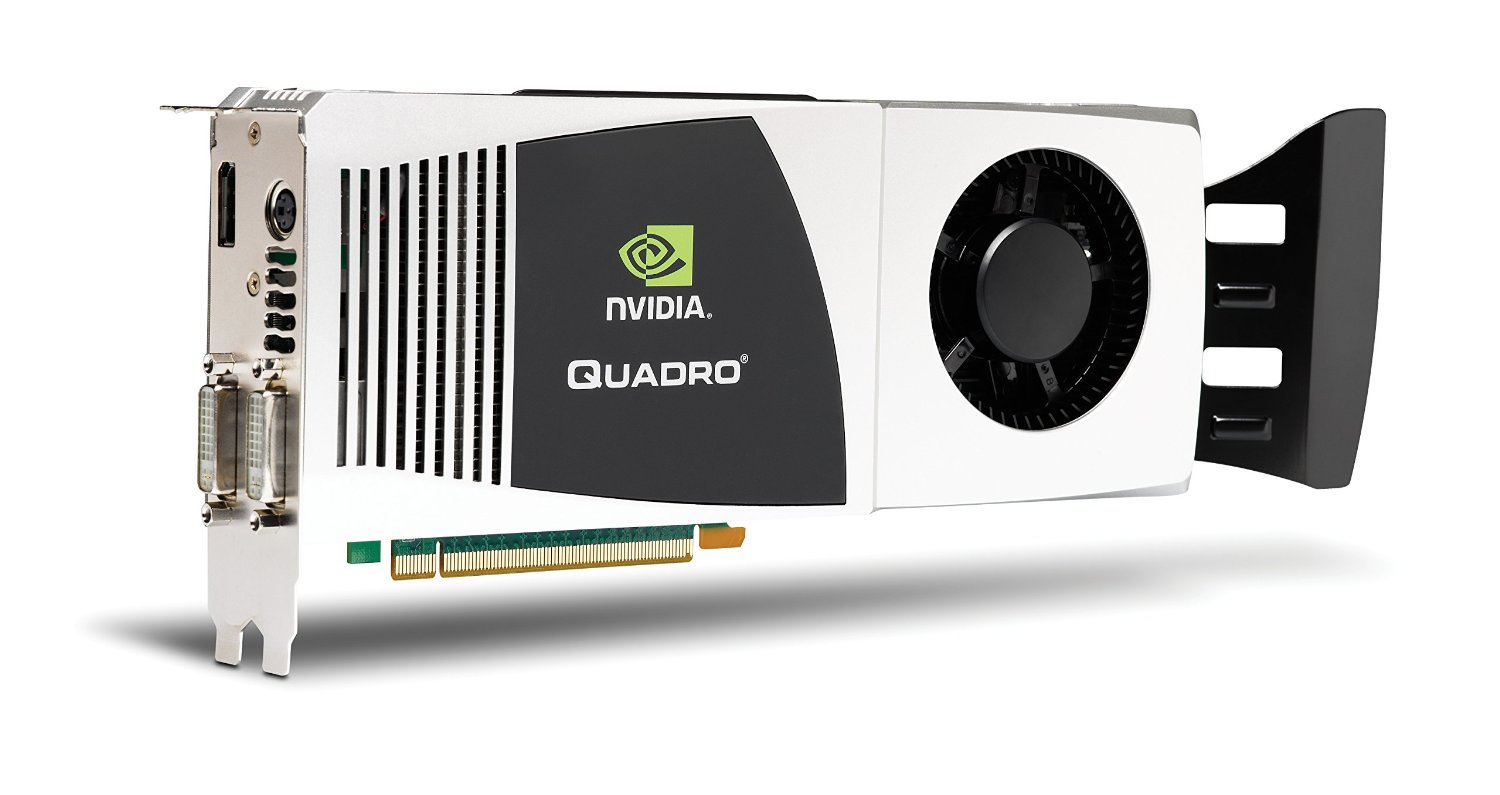

NVIDIA Quadro FX 5800 by PNY – Visualization Beyond 3DWhether searching for and extracting oil, designing and bringing the next luxury vehicle to market, or providing a diagnosis of a patient's condition, professionals are faced with a mountain of data that needs to be distilled into meaningful and actionable visualizations. The size and complexity of data is growing at an exponential rate. In an increasingly competitive and high-pressure landscape, professionals need to deliver results better, faster, and more cost effectively than ever before. Traditional processing paradigms just cannot keep up.
With advances in the GPU architecture, the NVIDIA Quadro FX 5800 by PNY gives geophysicists, designers, scientists, engineers, and other technical professionals visual supercomputing from their desktops. Professional applications take advantage of the Quadro FX 5800 advanced feature set, including up to 4GB of frame buffer, leading to greater interactivity with large datasets, providing the right set of tools to deliver results that push visualization beyond traditional 3D.
The NVIDIA Quadro FX 5800 by PNY is the ultra high-end solution in our Quadro FX product family and incorporates NVIDIA's second generation unified architecture to deliver up to a 50% performance improvement over the first generation through 240 processor cores.
| Memory Size | 4.0GB GDDR3 |
| Memory Interface | 512-bit |
| Memory Bandwidth | 102GB/sec |
| Max Power Consumption | 189W |
| Energy Star Compliant | Yes |
| Number of Slots | 2 |
| Display Connectors | DVI-I + DVI-I + DP + ST |
| Dual-Link DVI | 2 |
Product Specifications- Physical dimensions: ATX form factor, 4.36 inches x 10.5 inches, dual slot
- Frame buffer memory: 4GB GDDR3
- Memory interface: 512-bit
- Memory bandwidth: 102GB/sec
- Maximum power consumption: 189W
- Graphics bus: PCI Express Gen 2 x16
- Display connectors: DVI-I + DVI-I + DP + ST
- Dual-link DVI: Yes (2)
- DisplayPort: Yes (1)
- Auxiliary power connectors: Yes (2), one 8-pin and one 6-pin
- Number of slots: 2
- Thermal solution: Active fansink
- Genlock/Framelock: Optional (standard with PNY PN VCQFX5800G-PCIE-PB)
- SDI: Optional (standard with PNY PN VCQFX5800SDI-PCIE-PB)
- NVIDIA SLI™ technology: Yes
NVIDIA Quadro FX 5800 by PNY Architecture- 128-bit color precision
- Unlimited fragment instruction
- Unlimited vertex instruction
- 3D volumetric texture support
- Hardware accelerated antialiased points and lines
- Hardware OpenGL overlay planes
- Hardware accelerated two-sided lighting
- Hardware accelerated clipping planes
- 3rd generation occlusion culling
- Window ID clipping functionality
- Hardware accelerated line stippling
Shading Architecture- Full Shader Model 4.0 (OpenGL 2.1/DirectX 10 class)
- Long fragment programs (unlimited instructions)
- Long vertex programs (unlimited instructions)
- Looping and subroutines (up to 256 loops per vertex program)
- Dynamic flow control
- Conditional execution
High Level Shader Languages- Optimized complier for Cg and Microsoft HLSL
- OpenGL 2.1 and DirectX 10 support
- Open source compiler
High-Resolution Antialiasing- Rotated Grid Full-Scene Antialiasing (RG FSAA)
- 32x FSAA dramatically reduces visual aliasing artifacts or "jaggies" at resolutions up to 1920 x 1200
- 64x FSAA SLI mode
Display Resolution Support- Single DisplayPort support – ultra high-resolution panels (up to 2560 x 1600)
- Dual dual-link DVI-I outputs drive two digital displays at resolutions up to 2560 x 1600 at 60Hz
- Internal 400MHz DACs drive two analog displays up to 2048 x 1536 at 85Hz
NVIEW Architecture- Advanced multi-display desktop and application management seamlessly integrated into Microsoft Windows
Minimum System Requirements- Windows® 7, Vista, XP SP3, Linux®, or Solaris®
- PCIe x16 expansion slot
- 1GB or more of system memory, 2GB recommended
- 200MB of available disk space for full driver installation
- Blu-ray, DVD-ROM or CD-ROM drive
- DisplayPort, DVI or VGA compatible display(s)
4GB GDDR3 GPU memory with ultra fast memory bandwidthIndustry's first 4GB frame buffer and massive memory bandwidth up to 102GB/sec delivers high throughput for interactive visualization of large models and high performance for real-time processing of large textures and frames and enables the highest quality and resolution full-scene antialiasing (FSAA).
NVIDIA CUDA™ parallel computing processorA parallel computing processor architecture exposed through a C language environment and tool suite in combination with high performance visualization, CUDA unleashes new capabilities to solve highly complex challenges such as real-time ray tracing, video encoding, and interactive volume rendering.
Highest color fidelity10-bit per component color fidelity enables billions rather than millions of color variations for rich, vivid image quality with the broadest dynamic range.
DisplayPort digital display connectorDisplayPort supports ultra high-resolution panels (up to 2560 x 1600) which results in amazing image quality and detailed photorealistic images.
Dual dual-link DVI-I display connectorsTwo dual-link TDMS transmitters support ultra high-resolution panels (up to 2560 x 1600 at 60Hz on each panel) resulting in amazing image quality and detailed photorealistic images.
Quad buffered stereoOffers enhanced visual experience for professional applications that demand stereo viewing capability.
NVIDIA SLI technologyA revolutionary platform innovation that enables professional users to dynamically scale graphics performance, enhances image quality, and expands display real estate.
