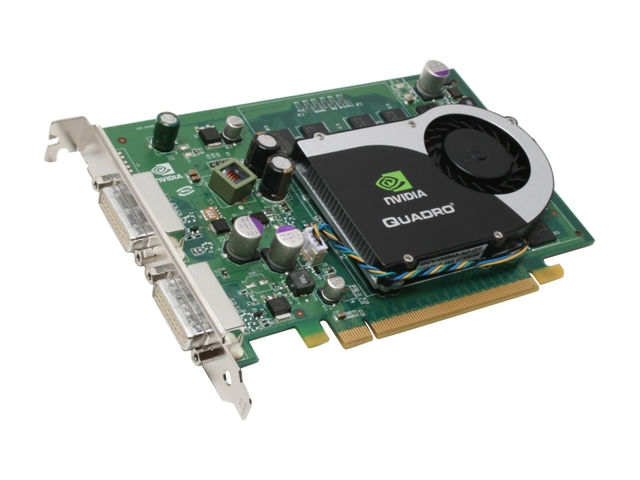

Picture of PNY 600-50588-0500-100 Quadro FX 570 256MB 128-bit GDDR2 PCI Express x16 Dual DVI Workstation Video Card

PNY 600-50588-0500-100 Quadro FX 570 256MB 128-bit GDDR2 PCI Express x16 Dual DVI Workstation Video Card

PNY 600-50588-0500-100 Quadro FX 570 256MB 128-bit GDDR2 PCI Express x16 Dual DVI Workstation Video Card
Manufacturer: PNY
Availability: In stock
SKU: 10006111
Manufacturer part number: 600-50588-0500-100
*
$99.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
NVIDIA Quadro FX 570 256 MB PCIe Graphics Card
GR521AA
Introduction

NVIDIA Quadro FX 570 features entry-level 3D performance with 256 MB of fast video memory, and programmability at an entry-level price for professional CAD, DCC, and visualization applications.

NVIDIA Quadro entry level graphics cards deliver unmatched value. Featuring a revolutionary unified architecture, Quadro dynamically allocates geometry, shading, and compute processing power to deliver powerful Graphics Processing Unit performance, ready to tackle 3D modeling tasks with shading and other effects. With 256 MB of frame buffer memory, Quadro entry-level solutions are Microsoft® Vista® ready, and are certified on MCAD, DCC, and other professional applications. Two dual link DVI-I connectors enable high resolution signals to two large format displays.

Performance & Features

Features include an array of parallel vertex engines, fully programmable pixel pipelines, a high-speed graphics memory bus, and next-generation memory architecture:

  • 256 MB 400MHz DDR2 SDRAM
  • DVI-I (dual-link) and DVI-I (dual-link)
  • Optimized for OpenGL® 2.1 and DirectX® 10 applications
  • Multi-display productivity
Compatibility
The NVIDIA Quadro FX 570 is supported on the following HP Personal Workstations: xw4550, xw4600, xw6600, xw8600 and xw9400.
Service and Support
The NVIDIA Quadro FX 570 has a one-year limited warranty or the remainder of the warranty of the HP product in which it is installed. Technical support is available seven days a week, 24 hours a day by phone, as well as online support forums. Parts and labor are available on-site within the next business day. Telephone support is available for parts diagnosis and installation. Certain restrictions and exclusions apply.

Technical Specifications

Form FactorATX
Bus TypePCI-Express x16
Memory256 MB 400MHz DDR2 SDRAM unified frame buffer, Z-buffer and Texture storage
ConnectorsDVI-I (dual-link) and DVI-I (dual-link)
Maximum ResolutionDual integrated analog display controllers supporting up to two analog displays at 2048x1536 @ 85Hz on both displays or dual digital displays at 1920x1200 (single-link) and 3840x2400 (dual-link).
NVIEW advanced multi-display desktop and application management seamlessly integrated into Microsoft® Windows®
RAMDACIntegrated dual 400MHz
Shading ArchitectureFully programmable GPU (OpenGL 2.1/DirectX 10 class)
Vertex/Pixel Shader 4.0
Shading Support (HLSL, GLSL, CgFX)
Supported Graphics APIsOGL 2.1 & SM4.0 and DirectX10 Support
Available Graphics DriversGenuine Windows Vista Business (64-bit and 32-bit)
Microsoft Windows XP Professional (64-bit and 32-bit)
Red Hat Enterprise Linux(RHEL) WS3, WS4 & 5 Desktop/Workstation
HP qualified drivers may be preloaded or available from the HP support Web site:
http://welcome.hp.com/country/us/en/support.html
Novell SUSE Linux Enterprise drivers may be obtained from:
ftp://download.nvidia.com/novell or http://www.nvidia.com
High-Resolution AntialiasingPureVideo 2 engine supports AES 128-bit decryption
GPU Computing (HW/SW including CUDA SDK
3D Textures
LightSpeed Memory Architecture II
128-bit color precision
Hardware accelerated anti-aliased points and lines
Hardware OpenGL overlay planes
H/W accelerated pixel readback
3rd generation occlusion culling
AA on scan-out
