PNY VCGPU6K-PCK Quadro 6GB DVI Dual DP ST PCI-E PCIE x16 Video Card Multi-GPU Compute Pack

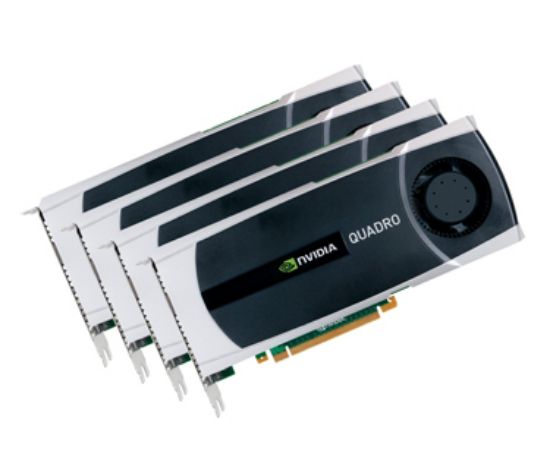

The NVIDIA 6000 Multi-GPU Compute Pack consists of four NVIDIA Quadro 6000 GPU boards. The NVIDIA Fermi-based Quadro 6000 GPU combines CUDA high performance computing, OpenGL hardware acceleration and advanced visualization capabilities.

Featuring ECC memory integrity and fully IEEE 764-2008 compliant 32- and 64-bit fast double-precision, each Quadro 6000 GPU is capable of delivering 1030.4 Gigaflops (Single Precision) or 515.2 Gigaflops (Double Precision) to enable applications ranging from immersive visualization, interactive ray tracing and real-time video processing, to other personal supercomputing solutions ranging from computational fluid dynamics to bioinformatics.

Target Markets

• Clustered GPU compute servers
• Personal supercomputing systems
• Remote rendering and video encoding
• Clustered image processing systems
• Large-scale visualization

---

GPU Memory Size		6 GB GDDR5
Memory Interface		384-bit
CUDA Cores		448
Performance	SPECViewperf (Geomean)	13x (faster)
Graphics	Open GL 4.1 Hardware Acceleration DirectX 11 Quad Buffered OpenGL Stereo	Yes 11 Yes
Compute	ECC Memory Fast Double Precision Dual Copy Engines	Yes Yes Yes
Software	ISV Workstation Certification ISV CUDA Certification	Yes Yes
Power	Max Power Consumption Energy Star Compliant	204W Yes
Remote Monitoring	Remote GPU Monitoring and Power Management	Yes

PNY provides unsurpassed service and commitment to its professional graphics customers offering: 3 year warranty, pre and post sales support, dedicated Quadro Field Application engineers and direct tech support hot lines. In addition, PNY delivers a complete solution including the appropriate adapters, cables, brackets, driver CD and documentation to ensure a quick and successful install. GPUs Powered by Fermi-Based NVIDIA^® CUDA™ Architecture
Delivers cluster performance at 1/10th the cost and 1/20th the power of CPU-only systems based on the latest quad core CPUs.

6 GB of GDDR5 Memory Per GPU with Ultra-Fast Bandwidth
Industry's first GPU with 6 GB of memory and memory bandwidth of 144 GB/sec for display of large models and complex scenes, as well as computation of massive datasets.

448 CUDA Cores
Delivers up to 515 Gigaflops of double-precision peak performance in each GPU, enabling a single workstation to deliver a Teraflop or more of performance. Single precision peak performance is over a Teraflop per GPU.

Fast 64-Bit Floating Point Precision
Industry's fastest double precision floating point performance enabling accurate results on mission-critical applications, including computer-aided-design, finite element analysis to computational fluid dynamics.

Error Correcting Code (ECC) Memory
Meets strict requirements for mission critical applications with uncompromised computing accuracy and reliability for workstations. Offers protection of data in memory to enhance application data integrity. Register files, L1/L2 caches, shared memory, and DRAM all are ECC protected.

NVIDIA Parallel DataCache™
Accelerates algorithms such as physics solvers, ray-tracing, and sparse matrix multiplication where data addresses are not known beforehand. This includes a configurable L1 cache per Streaming Multiprocessor block and a unified L2 cache for all of the processor cores.

NVIDIA GigaThread™ Engine
Provides up to 10x faster context switching compared to previous generation architectures, concurrent kernel execution, and improved thread block scheduling.

Asynchronous Transfer
Turbocharges system performance by transferring data over the PCIe bus while the computing cores are crunching other data. Even applications with heavy data-transfer requirements, such as seismic processing, can maximize the computing efficiency by transferring data to local memory before it is needed.

Dual Copy Engines
Enables the highest rates of parallel data processing and concurrent throughput between the GPU and host, accelerating techniques such as ray tracing, color grading and physical simulation.

NVIDIA^® Scalable Geometry Engine™
Dramatically improves geometry performance across a broad range of CAD, DCC and medical applications, enabling you to work interactively with models and scenes that are an order of magnitude more complex than ever before.

High-Quality Display Connectors
Attaches to ultra-high-resolution digital panels producing phenomenal photorealistic image quality from a range of display connectors. The Quadro 6000 GPU simultaneously supports two active display channels including DVI-DL and DisplayPort at resolutions up to 2560 x 1600 at 60Hz. The included DVI to VGA adapter supports resolutions up to 2048 x 1536 at 85Hz. HDMI 1.3a compliant displays can be driven with a 3rd party adapter (must be purchased separately) at resolutions up to 1920 x 1080 at 60Hz.

3D Stereo Synchronization
Enables robust control of stereo effect through a dedicated 3-pin mini-din connection between the graphics card and 3D stereo hardware.

Software Development Tools
CUDA C/C++/Fortran, OpenCL, Direct Compute Toolkits, NVIDIA Parallel Nsignt™ for Visual Studio
